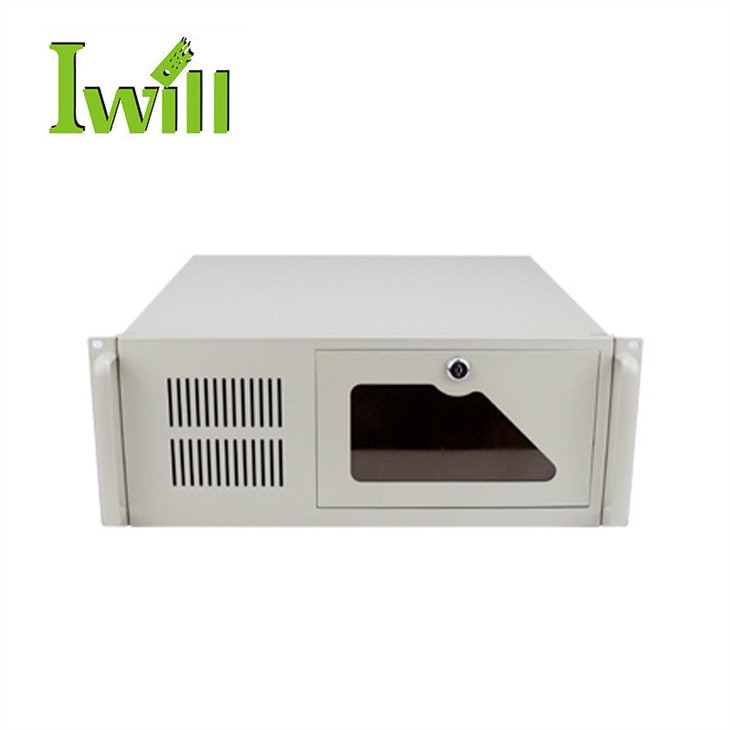

I3 I5 I7 4 ta PCI bilan sanoat kompyuter

Model

ZPC-620 (H110)

Rang

Oq (har qanday rangni sozlash mumkin)

Material

Gulsiz galvanizli qatlam yo'q

Protsessor

Intel Core i3 6100 (ikki yadroli, 4 ta tarmoqli, 3,7 gigagertsli)

Intel Core i5 6500 (to'rt yadroli, 4 ta tarmoqli, 3,2 gigagertsli, Turbo kuchaytirgichi 3,6 gigagertsli)

Intel Core i7 6700 (to'rt yadroli, 8 ta tarmoqli, 3,4 gigagertsli, Turbo 4,0 gigagertsli)

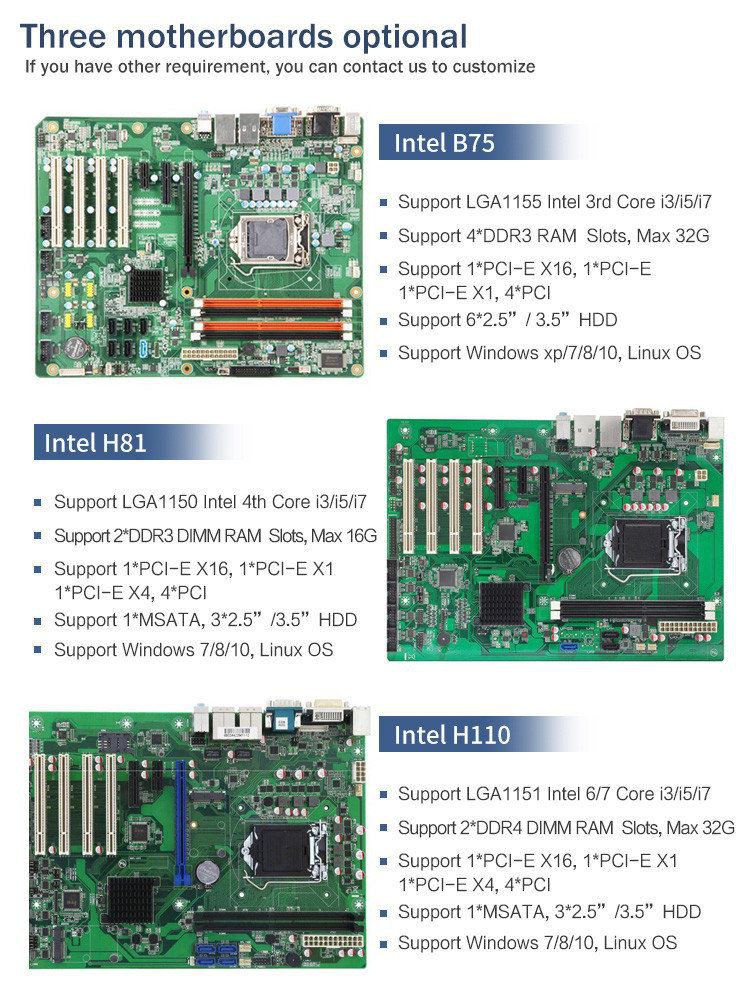

CPU tuzilishi

Intel H110

Ram

2*DDR4 2133/2400 DIMM, Maks: 32 GB

BIOS

AMI UEFI BIOS

Chipni ko'rsatish

Intel HD Graphics 530 o'rnatilgan

Portni ko'rsatish

1*VGA, 1*DVI-D, 1*HDMI (sinxron va asenkron ikkita ekran)

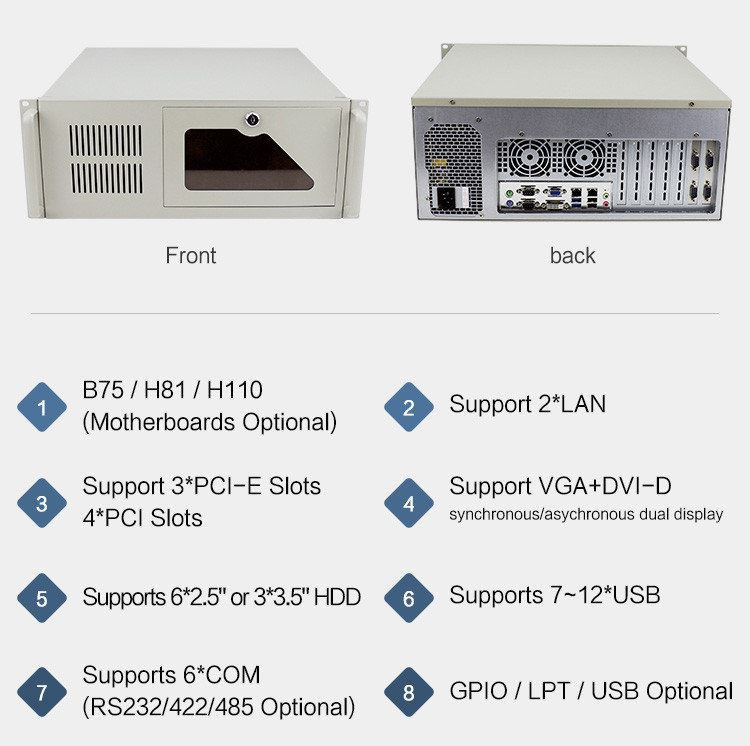

Old kirish/chiqish

2*USB2.0, 2*LED, 1*Quvvat tugmasi, 1*Reset

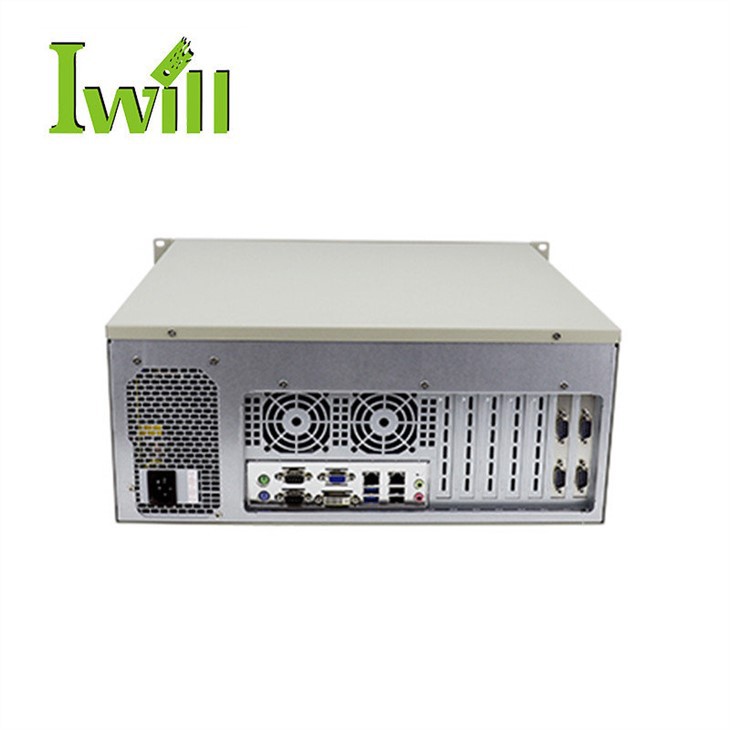

Orqa kirish/chiqish

4*USB3.0, 2*Intel 1000 LAN, 1*VGA, 1*DVI-D, 1*HDMI
1*PS/2, 3*Audio, 6*COM (COM3, 4*RS232/485 ixtiyoriy)

Kengaytirish uyasi

1*PCIE X16, 1*PCIE X1, 1*PCIE X4, 4*PCI

1*MINI PCIE (qo'llab -quvvatlash MSATA)

Kengaytirish porti

GPIO, LPT, 1*USB2.0 ixtiyoriy

LAN

1*Intel i211-AT, 1*Intel i219-LM

Saqlash

1*MSATA SSD, 3*2,5" /3,5" Qattiq disk

Quvvatlantirish manbai

AC 180 ～ 264 V (50 ～ 60 Gts), 300 Vt nominal quvvat

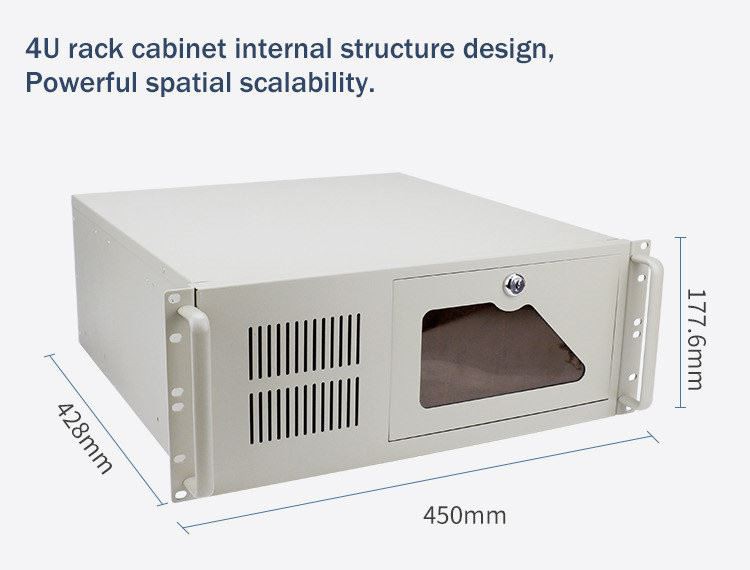

O'lcham

428 * 450 * 177,6 mm

Og'irligi

12,5 kg (yalang'och suyak)

Ilova

Tarmoq serverida, KIOSKda, reklama mashinasida, o'ziga xizmat ko'rsatish terminalida, elektron doskada, bankomatda, POS/chakana savdo tarmog'ida qo'llaniladi.
