HM-N5095D16-UHL

◇ Intel® Jasper Lake protsessorini qabul qiling
◇ Intel® UHD Grafika
◇ 1 × DDR4 2933MHz SO-DIMM RAM, maksimal 16 GB
◇ VGA, LVDS, HDMI uch tomonlama displeyni qo'llab-quvvatlaydi
◇ 4 ×USB3.0, 6 ×USB2.0
◇ 6 × COM, 1 × LPT, 1 × PS/2
◇ 1 × RJ45 LAN (RTL8111H PCIe avtobus tarmoq kartasi chipi), 1 × Mini-PCIe
◇ 1 × MSATA, 1 × SATA
◇ Qo'riqchini qo'llab-quvvatlash, tarmoqni uyg'otish va disksiz yuklash.
◇ Chakana savdo, o'z-o'ziga xizmat ko'rsatish, yaxlit mashina va sanoat nazorati sohalari uchun javob beradi

HM-N5095D16-UHL

Bu 170x170 mm oʻlchamdagi Mini Itx anakarti, dunyodagi eng kichik mahalliy X86 platformasi.

◆Intel® Jasper Lake protsessorini qabul qiling
◆Intel® UHD Grafikasi
◆1 × DDR4 2933MHz SO-DIMM RAM, maksimal 16GB
◆VGA, LVDS, HDMI uch tomonlama displeyni qo'llab-quvvatlaydi
◆4 ×USB3.0, 6 ×USB2.0
◆6 ×COM, 1 ×LPT, 1 ×PS/2
◆1 × RJ45 LAN (RTL8111H PCIe avtobus tarmoq kartasi chipi), 1 × Mini-PCIe
◆1 × MSATA, 1 × SATA
◆Support watchdog, tarmoqni uygʻotish va disksiz yuklash.
◆ Chakana savdo, o'z-o'ziga xizmat ko'rsatish, yaxlit mashina va sanoat nazorati sohalari uchun javob beradi

HM-N5095D16-UHL mahsulot parametrlari

Markaziy protsessor	Intel® Celeron® N{{0}}C/4T 2,0 Gigagerts (2,9 Gigagertsli portlash) 4M
Xotira	1x DDR4 SO-DIMM 2933MHz yagona kanal, Maks 16GB
Grafika	Intel® UHD Grafikasi
VGA	1 × DB15 (Ayol teshik) Port, 1 × Gofret
H-D-M-I	1 × port
EDP1/LVDS	1 × Sarlavha (LVDS)
Ko'p displey	Uch tomonlama displey
Saqlash	1 × SATA, 1 × MSATA
COM	6 × Port, COM2 RS232/RS485, COM2 va COM3 RI/5V/12V ni qo‘llab-quvvatlaydi
Kengaytirish uyasi	1 × Mini-PCIe, WIFI/BT 3G/4G-ni qo'llab-quvvatlaydi

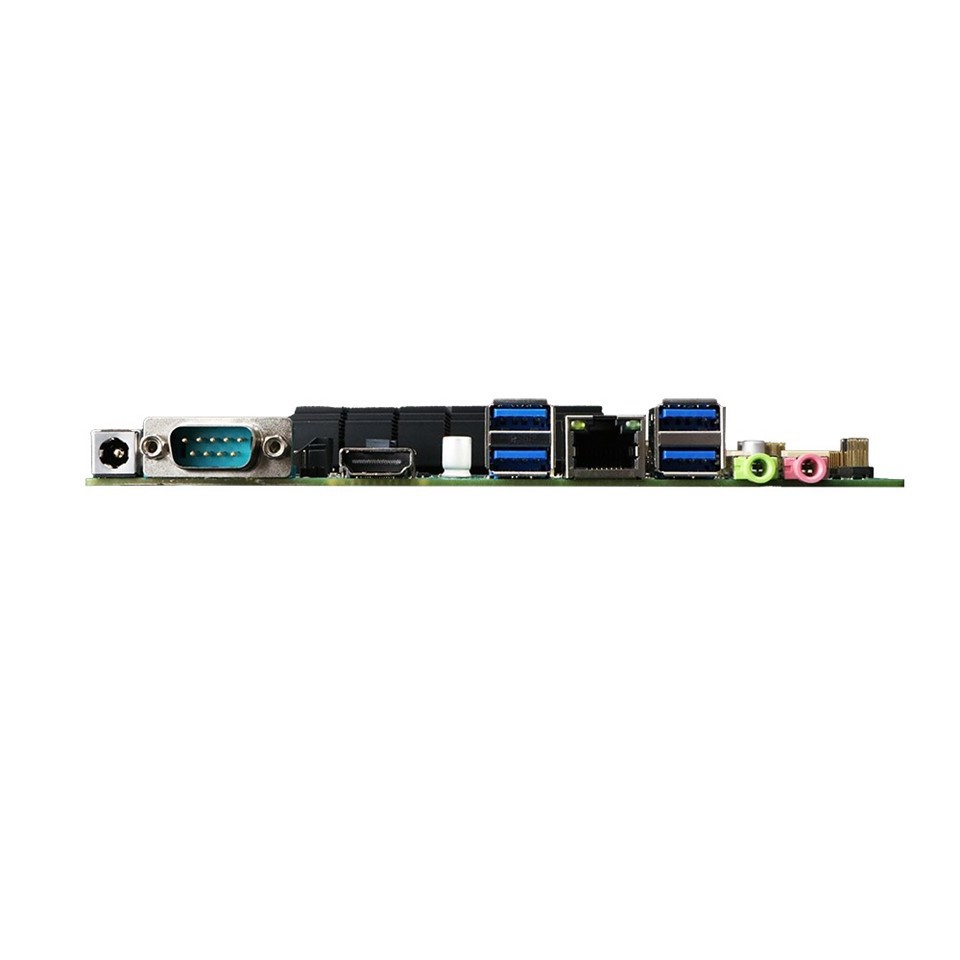

Orqa IO	1 × DC uyasi 1 ×H-D-M-I 1 × VGA 4 ×USB3.0 1 × RJ45 1000M LAN (RTL8111H) 1 × Chiqish, 1 × Mikrofon kirish
Ichki Ulagich	1 × LVDS, 1 × JVGA 1 × Mini-PCIe, 1 × SIM 1 × F_Audio, 1 ×JSPK 6 × JCOM 1 × JPS/2 , 1 × JLPT 3 × JUSB, kengaytiriladigan 6 × USB2.0 1 × SATA, 1 × MSATA 1 × F_PANEL ,1 ×JCASH 1 ×CPU_FAN,1 ×SYS_FAN 1 × SATA_PWR, 1 × INVERT
Hajmi	170×170 mm
PWR kiritish	DC 12V
Operatsiya	0~60 daraja, 10%~90%RH, kondensatsiyalanmagan
Saqlash	-25~75 daraja, 5%~95%RH, kondensatsiz
