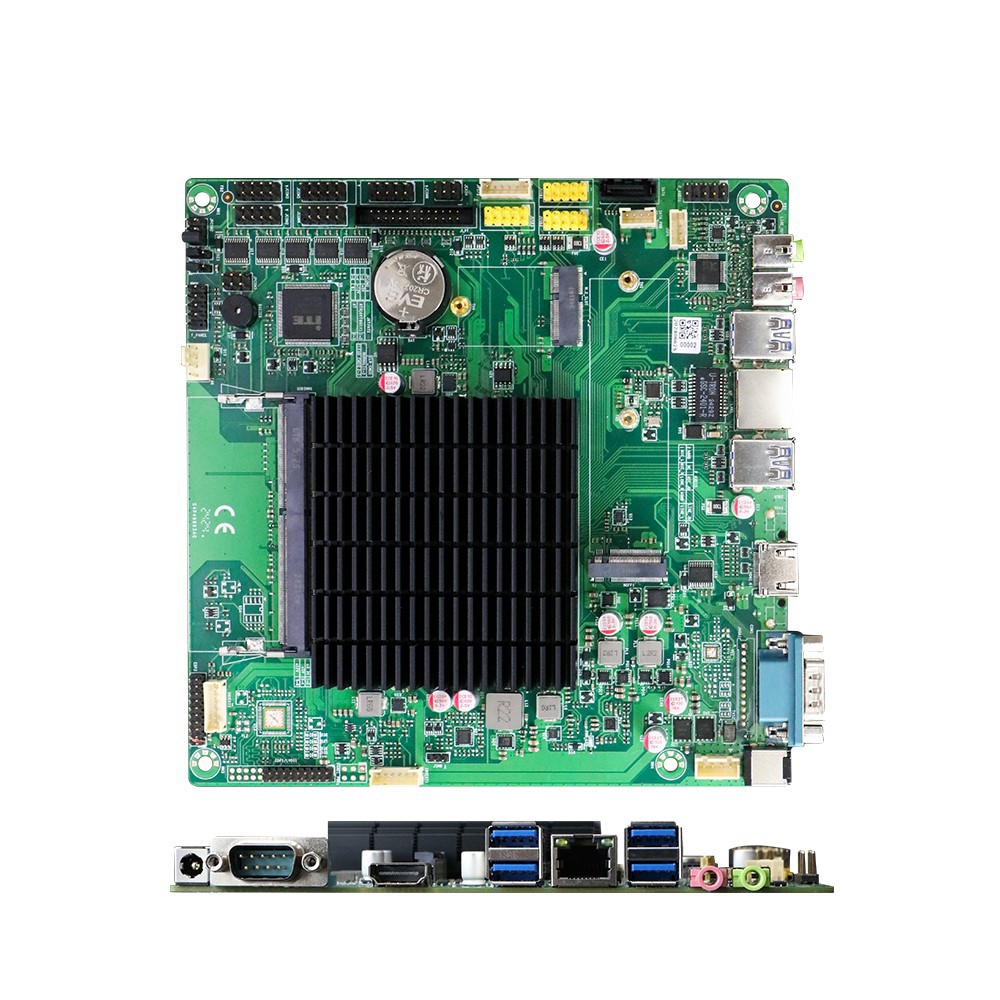

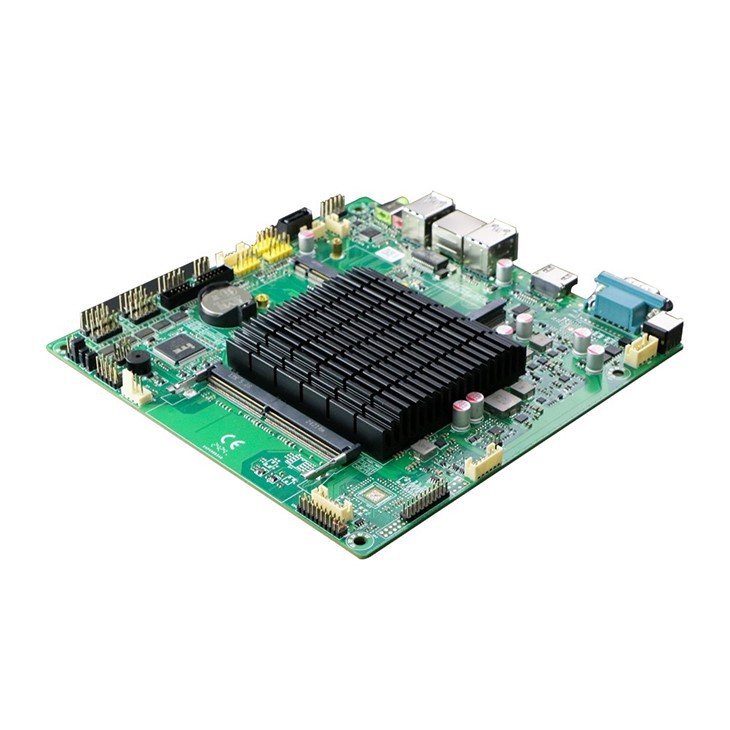

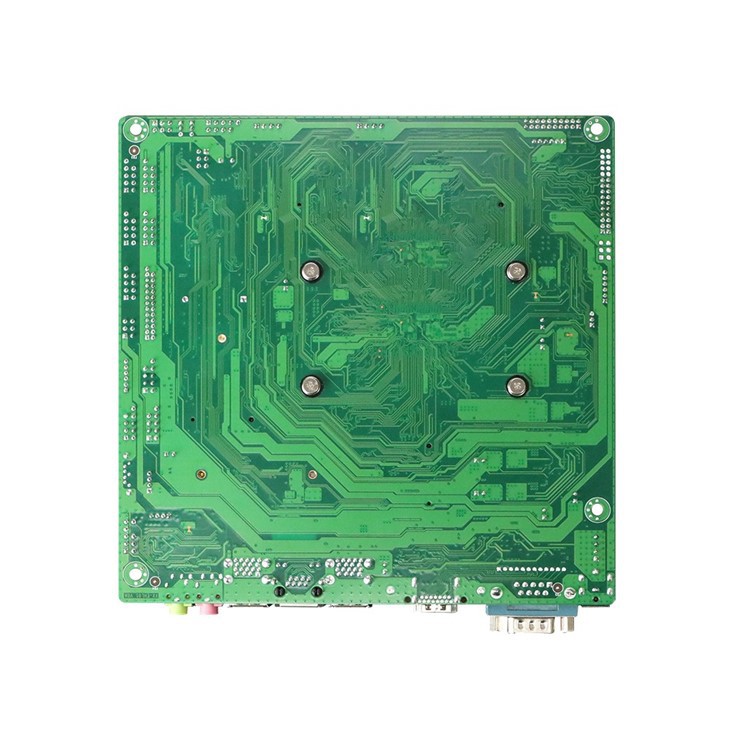

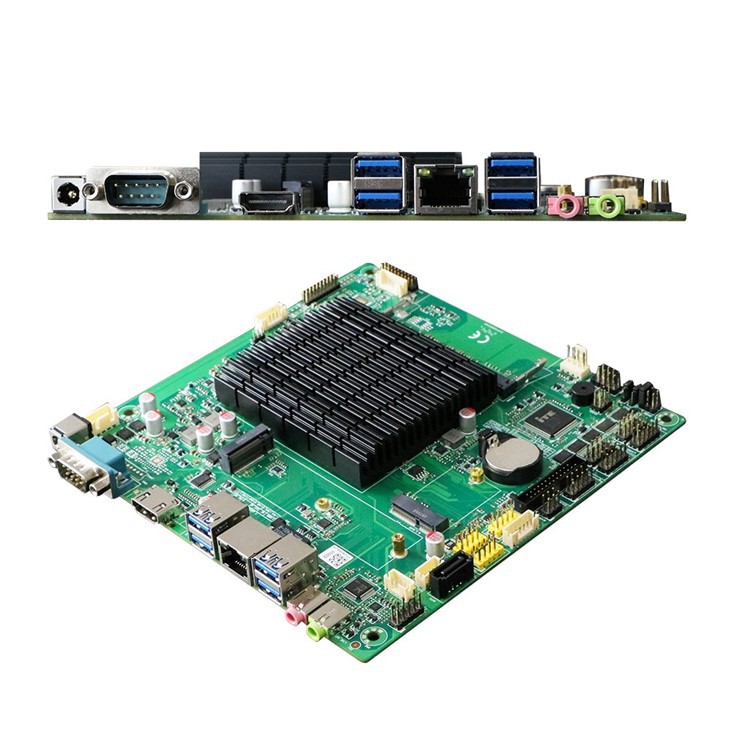

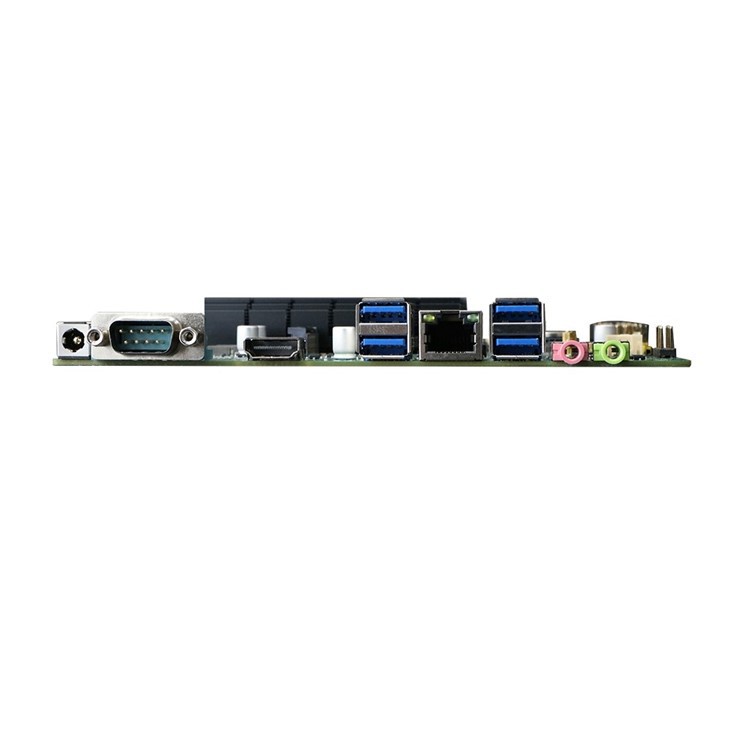

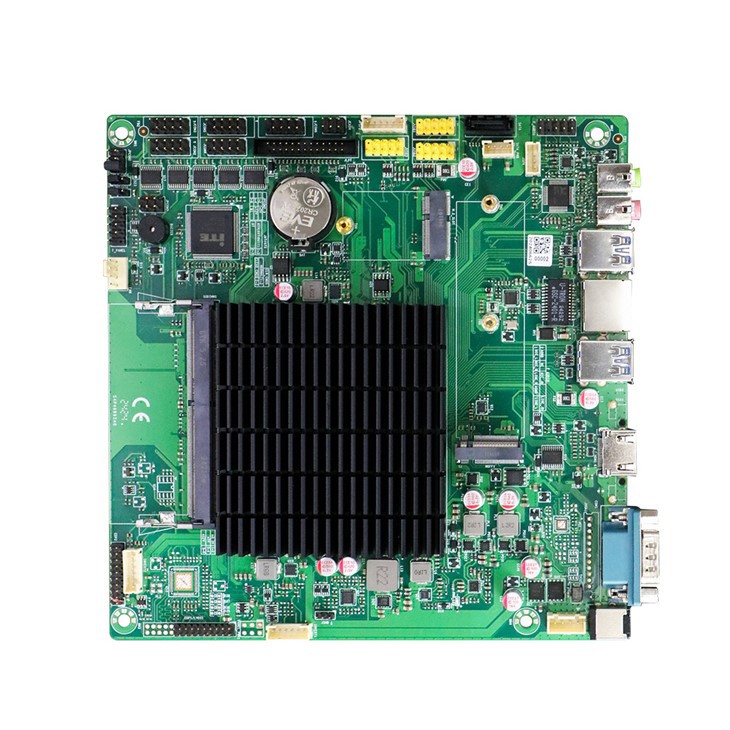

J6412 mini itx anhumalari H-EHL01
• 170 x 170 mm mini itx anamo taxta
• J6412 protsessorini Intel Elxart ko'lini qabul qilish
• 1 DDR 4 3200 MT / Smemory, Max 16GB
• Yuqori hisoblash kuchi, kam quvvat sarfi
• tibbiy, aloqa, sanoatni avtomatlashtirishda keng qo'llaniladi
So'rov yuborish
Product Details ofJ6412 mini itx anhumalari H-EHL01
H-EHL01 Intel etuk Elxart ko'li platformasini qabul qiladi, J6412 protsessor Standart 17 * 17 versiyasi, boy IO interfeysi. Qo'llab-quvvatlash DDR 4 3200 MT / S 16 GB-nimm xotirasi, yuqori hisoblash qobiliyati, tibbiy, kommunikatsiya va boshqa sohalarda keng qo'llaniladigan, mijozlarning ehtiyojlarini qondirish uchun.
H-EHL01
| Protsessor | Intel® Celeron® protsessor J6412 (4 C 1,5 million kesh, 2,60 ga yaqin) |
| Chipset | Intel Elxart Leyk Soc Integratsiyalashgan |
| Displey nazoraterini ko'rsatish | Intel Cpu Intel Dispect Ko'rib chiqishlar o'rnatildi |
| Displey porti | Uchta displey portlari: VGA / HD + EDP + EDPVGA MAXSUS QABRI 4096X2160 @ 3080 @ 60hz eng yaxshi LVDSning eng yaxshi o'lchamlari: 1920 * 1080 |
| Xotira | 1 * DDR4 RAM SLOT, MAX 16 GB |
| Saqlash | 1 * Sata3. 0, 1xm. {4}}} {}}} {4}}} {}} / 2280 portlar |
| Audio | Orqa Io mikroavn, chiziqni qo'llab-quvvatlaydi, shassi old panelli audio, ikki tomonlama kanal 2w / 8ō, 3w / 4-elektr quvvati |
| Yona | 1xrj45 gigabit Ethernet port RTL8111HH |
| USB | Orqa io: 4 x usb 3. 0 (ikki qatlam USB 3. 0 turi-a) |
| PS / 2 | 1 lpt parallel port |
| Com |
6 * Rs232 com, Com2 & Com3 qo'llab-quvvatlash PIN 9 5 9 5 {12V quvvat manbai |
| Boshqa portlar | 1 PS / {{2 1 * 6PIN WAFF, 1 JCSH Cash Box ulagich (Naqd boklar kengashi bilan) |
| Ish muhiti | {{0} {60 daraja 5% dan 95% kondensatsiya |
| Saqlash muhiti | -20 75 darajaga 5% dan 95% kondensatsiya |
| Operatsion tizim | Win 7/8/10 Server 2008/2012, Linux |
| Bios | Ami UEFI BIOS |
| Boshqa funktsiya | Watch Dog, diskni ishga tushirish, Netwame uyg'onish, quvvatni ishga tushirish |
| Quvvatlantirish manbai | DC-in |
| PCB hajmi | 170 mm * 170mm (l * w) |
| Model | Markaziy protsessor | Lvon | Chivin | Hd | VGA | Yona | USB | Com | M.2 | Mini-pcite | |
| 3.0 | 2.0 | ||||||||||
| HM-J6412D 12- H2E | J6412 |
/
|
2
|
1 | / | 1 | 4 | 5 | 2 | 2 | / |
| HM-J6412D 12- gle | J6412 |
/
|
1
|
/ | 1 | 4 | 5 | 2 | 2 | / | |
| HM-J6412D 12- v2e | J6412 |
/
|
2 | / | 1 | 1 | 4 | 5 | 2 | 2 | / |
| Hm-j6412d 12- vl | J6412 | 1 | 1 | / | 1 | 1 | 4 | 5 | 2 | 2 | / |
| HM-J6412D 16- H2E | J6412 |
/
|
2 | 1 | / | 1 | 4 | 5 | 6 | 2 | / |
| HM-J6412D 16- gle | J6412 | 1 | 1 | 1 | / | 1 | 4 | 5 | 6 | 2 | / |
| HM-J6412D 16- v2e | J6412 |
/
|
2 | / | 1 | 1 | 4 | 5 | 6 | 2 | / |
| Hm-j6412d 16- vl |
J6412
|
1 | 1 | / | 1 | 1 | 4 | 5 | 6 | 2 | / |
Issiq teglar: J6412 mini itx anamo taxtalari H-EHL01, Xitoy, etkazib beruvchilar, zavod, fabrika, ulgurji, sotib olish, sotib olish, narx, arzon, sotib olish uchun sotiladi
